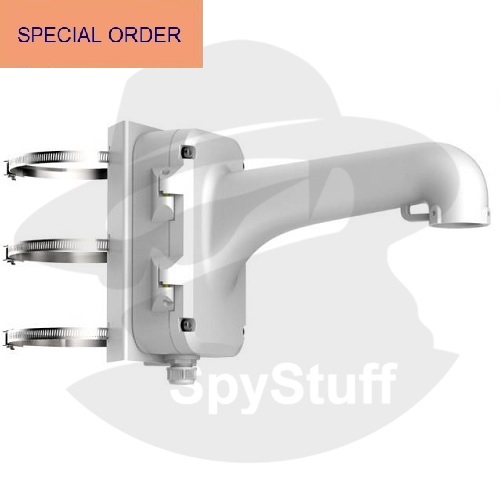

Model: DS-1604ZJ-pole. HIKVISION. PTZ Vertical Pole Mount. Aluminium Alloy & Steel. Hikvision White.

Product code
DS-1604ZJ-pole

Stock Keeping Unit
CC468-15

SPECIAL ORDER
Special order items are sourced on request.
Please submit an order enquiry via our contact form and one of our consultants will contact you with more information.

Key Features

PTZ Vertical pole mounting bracket with the junction box
Aluminium alloy and steel material with surface spray treatment
Adjustable diameter from 67 mm to 127 mm
Supports bottom outlet and back outlet
The hook for safety rope facilitates speed dome’s installation
Hikvision White

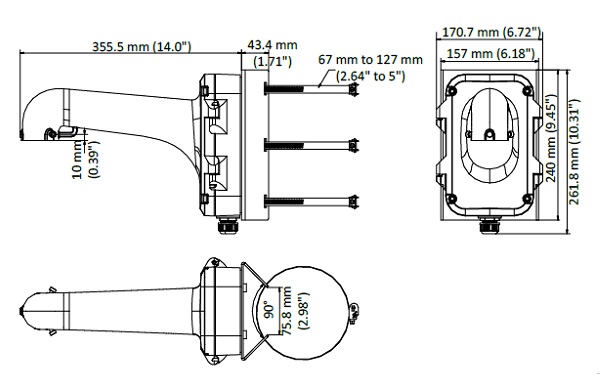

Dimensions

Documentation associated with this product
Documentation associated with this product
Documentation associated with this product
Documentation associated with this product
Documentation associated with this product
Documentation associated with this product
Documentation associated with this product

Datasheet (321kB)

Do you want to do the installation yourself? (DIY)

Then get the basics regarding installation info from our ICE Tutorials SECTION

SpyStuff has CCTV installation contractor's who offer installation services at places like....

A typical CCTV installation project consists of the following scope of works:

1. Site survey, planning and design
2. Physical installation and local commissioning
3. System Integration (Integrate your NVR or DVR for internet remote viewing)

If you prefer to do the installation yourself, refer to our ICE Tutorials section for some basic background information.
